多列颗粒包装机 特点及参数 EQUIPMENT FEATURE AND PARAMETER
可实现定制化多种计量方式
It can achieve various customized metering methods
可满足审计追踪、电子签名、数据统计等功能
It can meet functions such as audit trails, electronic signatures, and data statistics
配置18.5寸超大工控屏，全新人机交互界面
Equipped with an 18.5-inch large industrial control screen and a newly designed human-machine interface
采用全伺服控制系统，提升OEE设备综合效率
Uses a full servo control system to enhance OEE
符合EHS管理要求
Complies with EHS management reguirements
稳定速度可达70-80切/分钟
Stable speed can reach 70-80 cuts per minute
具备自动充氮功能，残氧可控制在2%以内
Equipped with an automatic nitrogen flling function,with residual oxygen controlled within 2%

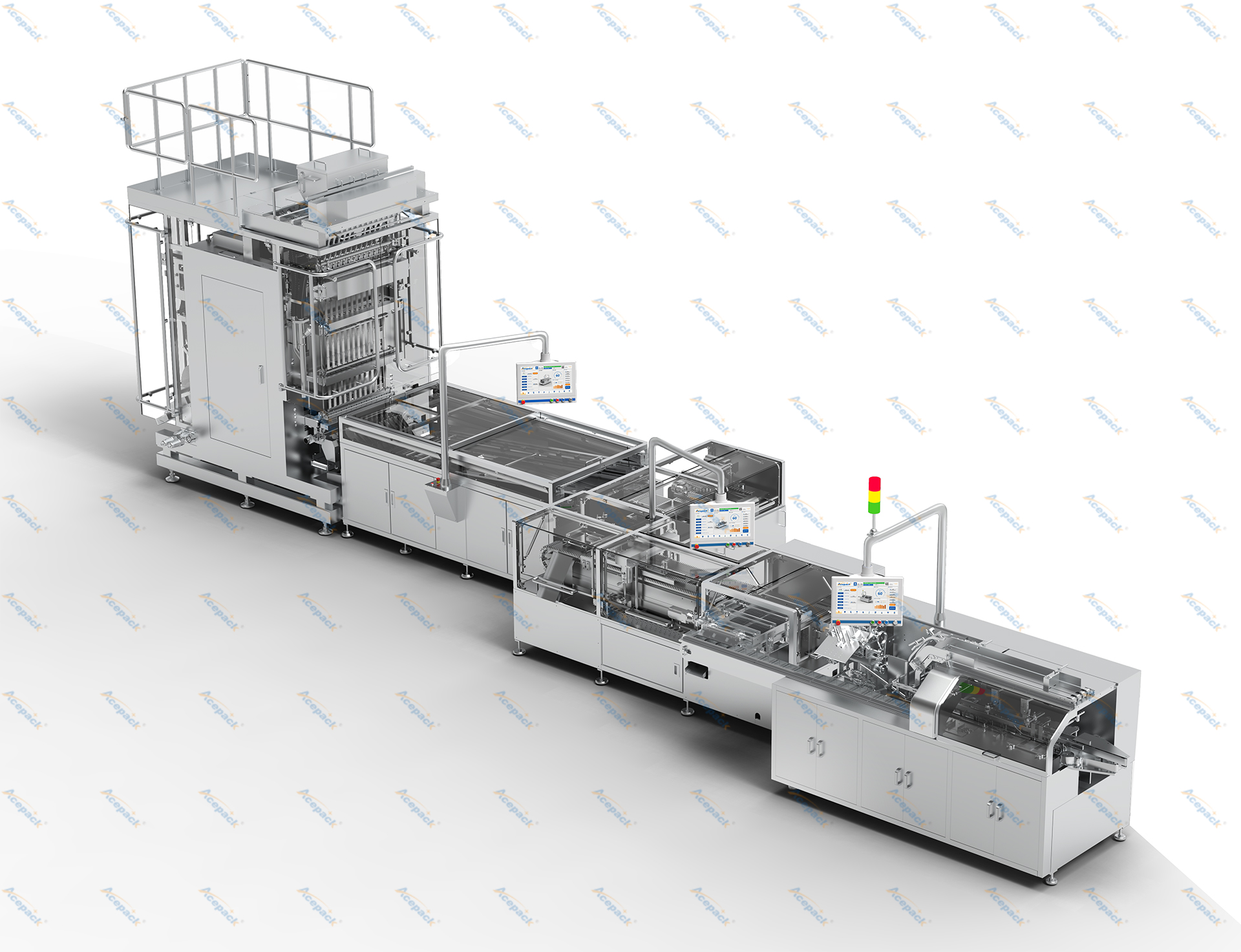

可实现后端定制化整线多种解决方案，助力企业无人化生产
Can provide customized end-to-end solutions,supporting automation in production for businesses
|
型 号 Model |
MS-200 |
MS-500 |
MS-700 |
MS-900 |
|
列 数 Lane number |
1-4列(Lane) |
4-12列(Lane) |
4-18列(Lane) |
5-18列(Lane) |
|
计量方式 Measuring Mothod |
陶瓷泵Ceramic pump长螺杆Long screw短螺杆Short screw量杯Volumetric Cup数粒机electronic granulation counter |
|||
|
包装速度 Capacity |
40-80袋/列/分钟40-80 bags/Lane/minute |
|||
|
充填容量 Filling capacity |
粉剂powder:0.5-50g 颗粒剂Granule:0.5~30g 液体liquid:5-50ml 丸剂、片剂Pills、tablets:1-120pc |
|||
|
制袋尺寸 Sachet size |
长L:60-180mm宽W:15-70mm |
|||
|
膜宽 Film width |
最大膜宽Max.260mm |
最大膜宽Max.500mm |
最大膜宽Max.750mm |
最大膜宽Max.980mm |
|
封口形式 Sealing type |
背封Back sealing/Stick bag |
|||
|
切口形式 Cutting type |
平口切Straight cutting锯齿切Zig zag cutting圆角切Round corner cutting异形切Die-cut |
|||
|
气压功率 Air&Power |
0.8Mpa/0.8-1.2m3/min;3.5-20kw |
|||
|
尺寸重量 Dimension&weight |
1750*1100mm/1300kg |
2400*1550mm/3000kg |
2400*1800mm/约3200kg |
2400*2050mm/约3500kg |

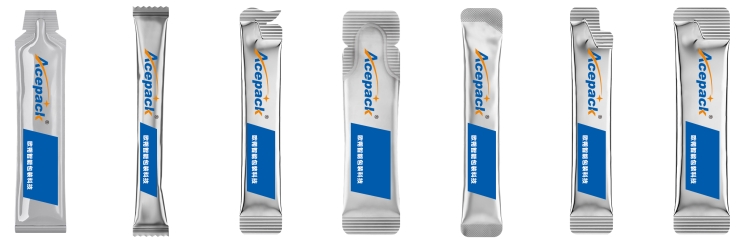

多列包装机包装样袋：
