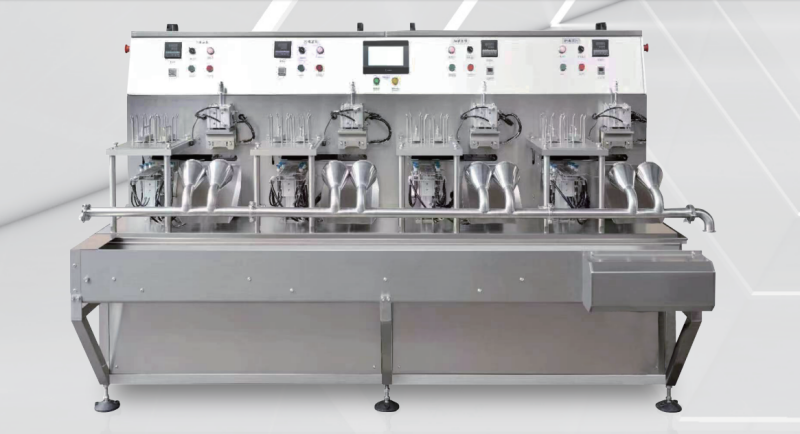

膨胀袋灌装机的特点：
(1).设备自动进行取袋、开袋、灌装、封口
(2).伺服调节容量，操作简单
(3).整机传动运转顺畅、无卡顿
(4).可连接CIP清洗，维修方便;便于清洁
|
型号Model |
AP-0490A(3000/pph) | AP-0890A(7000/pph) |
|
灌装封口头数 Filling and sealing quantity |
4头(four heads filling ) | 8 头(eight heads filling) |
|
尺寸size |
2300mm*1350mm*1500mm(L*W*H) | 2620mm*1500mm*1500mm(L*W*H) |
|
重量Weight |
600KG | 800KG |
|
电源电压 voltage supply |
三相五线制; F级绝缘; 电压380V+5%; 频率:50HZ士1% (Three-phase five-wire system; Class F insulation; Voltage 380V±5%; Frequency: 50HZ±1%) |
三相五线制; F级绝缘; 电压380V+5%; 频率: 50HZ士1% (Three-phase five-wire system; Class F insulation; Voltage 380V±5%; Frequency: 50HZ±1%) |
|
装机容量 Installed capacity |
2.5KW | 4.8KW |
|
压缩空气流量 Compressed air flow |
1.5 立方米/min | 1.5 立方米/min |
|
压缩空气压力 compressed air pressure |
0.4~0.6 Mpa | 0.4~0.6 Mpa |
|
灌装进料压力 Filling feed pressure |
0.02~0.05 Mpa | 0.02~0.05 Mpa |
|
最大灌装容量 Max. filling capacity |
248 ml | 248 ml |
|
灌装精度 Filling accuracy |
≤±1 ml | ≤±1 ml |
